At its core, D3 provides some of the functionality of jQuery for querying and manipulating the DOM. If you have used jQuery, you are familiar with the idea that the $ function can be passed a CSS-like selector string and it returns an object that encapsulates zero or more matching DOM elements.

D3 does something similar in its "Selections" module which is included by default. This adds many methods to the d3 object. It also defines the methods available on selection object. Highlights of these methods are provided below.

For more detail, see the official documentation for the d3-selection module at https://github.com/d3/d3-selection/blob/v1.4.1/README.md.

Querying the DOM

`d3.selectAll(selector)`

This method returns a "selection" that contains a reference to every element that matches a given selector. This is a empty collection if no matches are found. We will talk much more about selections later, but for now you think of them as being like a jQuery object.

For example, the following line finds all elements that have the CSS class bar, regardless of their nesting level in the document.

const selection = d3.selectAll('.bar');

If you use console.log to output selection in the DevTools console, you will see that it is an object that has a _groups property that holds an array of groups. In this case there is only one group. The group is represented by a DOM NodeList that contains references to the each of the DOM elements that have a class of "bar".

`selection.selectAll(selector)`

This method is similar to d3.selectAll(selector), but only returns elements that are descendants of elements in the selection.

`d3.select(selector)`

This method is similar to selectAll, but returns a selection that only encapsulates the first matching DOM element.

`selection.select(selector)`

This method is similar to d3.select(selector), but only returns the first matching element that is a descendant of an element in the selection.

`selection.filter(filter)`

This method creates a new selection that only contains a subset of the elements in the selection. The filter argument can be a selector string or a predicate function. For example, const reds = selection.filter('.red'); creates a selection that only contains elements in selection with a class of red. And const small = bars.filter(d => d < 10); creates a selection that only contains elements with a bound data value that is less than 10. TODO: BUT YOU HAVEN'T TALKED ABOUT DATA BINDING YET!

`selection.merge(otherSelection)`

This method creates a new selection that combines the selection on which it is called with a given selection. For example, const s3 = s1.merge(s2); creates a selection that contains all the elements in both s1 and s2.

`d3.style(node, cssPropertyName)`

This method returns the value of a CSS property on a given node. For example, const color = d3.style(node, 'color'); returns the value of the CSS property color on node.

Modifying the DOM

`selection.attr(name [, value])`

When only passed an attribute name, this returns the value of that attribute on the first element in the selection. When passed both a name and a value, this sets the attribute to the given value on every element in the selection. The selection is returned to support call chaining.

`selection.classed(classes [, boolean])`

When only passed a string of CSS class names, this returns a boolean indicating whether the first element in the selection has those classes. When passed both a string of CSS class names and a boolean value, those classes are added to all the elements in the selection if the boolean is true, and removed if it is false. The selection is returned to support call chaining.

`selection.style(name [, value])`

When only passed a CSS property name, this returns the current value of that property in the first element of the selection. When passed a CSS property name and a value, this sets that property to the given value for all elements in the selection. If the value is a function, it is invoked once for each element in the selection and is passed the data bound to the element and the element index so that a different value can be computed for each element. The selection is returned to support call chaining.

`selection.property(name, [, value])`

This is similar to selection.attr(name [, value]), but operates on special properties that are not treated as attributes. For example, it can be used on the value of a form element or the checked value of a checkbox.

`selection.text([value])`

When no value is passed, this returns the text content of the first element in the selection. When a value is passed, this sets the text content of every element in the selection. If the value is a function, it is invoked on each element in the selection, is passed the data bound to the element and its index, and returns the text content to be used for the element. The selection is returned to support call chaining.

`selection.html([value])`

This is similar to selection.text([value]), but operates on the inner HTML instead of the text content. The value is parsed as HTML, so it can include character entities that specify Unicode characters, and other HTML strings.

`selection.append(type)`

This appends a new element of the given type (ex. 'div') as the last child of each element in the selection. If it is passed a function instead of a string, the function is invoked for each element in the selection, is passed the data bound to the element and its index, and returns the name of the new element to be appended. This returns a new selection whose update selection contains both the existing elements and the appended elements. This is useful for modifying both sets of elements.

`selection.insert(type [, before])`

This is similar to selection.append(type), but it inserts a new element before each element in the selection. For detail on the before argument, see the official documentation for the d3-selection module. This returns a new selection containing the inserted elements.

`selection.remove()`

This removes all element in the selection from the document. It returns a new selection containing the removed elements.

`selection.clone([deep])`

This inserts a clone of each element in the selection immediately after each of those elements. If deep is specified and is truthy, descendant elements are also cloned. Otherwise, references to the existing descendant elements are used in the clones.

`selection.sort(comparator)`

This reorders the elements in the selection within the DOM and returns a new selection that contains the elements in the selection sorted based on the comparator function. The comparator function follows the same rules as comparator functions that are used with the JavaScript Array sort method.

`selection.raise()`

This moves each element in the selection to be the last child of its parent.

`selection.lower()`

This moves each element in the selection to be the first child of its parent.

`d3.create(name)`

This creates an element with the given name and returns a selector containing this element. It is not yet attached to any other element.

Joining Data

`selection.data([dataArray [, keyFunction]])`

This binds the values in dataArray to the elements in the selection. It is a fundamental part of understanding D3. There are three possibilities to consider:

The number of values in dataArray matches the number of elements in selection, so no elements need to be created or removed.
There are more values in dataArray than there are elements in selection, so more elements need to be created.
There are fewer values in dataArray than there are elements in selection, so some existing elements need to be removed.

The data method returns a new selection that contains the properties _groups (the "update" selection), _enter (the "enter" selection), and _exit (the "exit" selection). Each of these sub-selections is an array of arrays where typically the outer array holds a single array.

From https://bost.ocks.org/mike/selection/, "Selections returned by d3.select and d3.selectAll have exactly one group. The only way for you to obtain a selection with multiple groups is selection.selectAll." and "With selectAll, every element in the old selection becomes a group in the new selection; each group contains an old element’s matching descendant elements."

For example:

const tds = d3.selectAll('tr').selectAll('td');

The variable tds is set to a selection object whose _groups property is set to an array with one member for each tr. Those members are arrays that hold each of the td elements in the corresponding tr.

The update selection contains elements that were already present in the selection. The enter selection contains placeholders for elements that need to be created. The exit selection contains elements for which no data was bound. The elements in the update and enter selections have a __data__ property that holds its bound value.

For example, suppose selection contains three elements and dataArray contains five values. In the returned selection, the update selection will contain the three existing elements, the enter selection will contain two placeholders, and the exit selection will be empty. The enter selection can be used to append an element for each of the placeholders.

As another example, suppose selection contains five elements and dataArray contains three values. In the returned selection, the update selection will contain the first three existing elements, the enter selection will be empty, and the exit selection will contain the two elements for which no data value could be bound. The exit selection can be used to remove the excess elements.

If a keyFunction is not provided, data from dataArray is bound to the elements in selection in the order in which it appears. If a keyFunction is provided,

`selection.join(enter [, update [, exit]])`

This provides an alternative to using the enter and exit methods that many find easier to understand. The arguments are all functions that invoked to handle adding new elements (enter), updating existing elements (update), and removing excess elements (exit). If no exit function is provided, excess elements are removed by default, which is typically the desired behavior.

The fruit bar chart example demonstrates using the join method.

selection.enter

selection.exit

selection.datum

Handling Events

selection.on

selection.dispatch

d3.event

d3.customEvent

d3.mouse

d3.touch

d3.touches

d3.clientPoint

Control Flow

selection.each

selection.call

selection.empty

selection.nodes

selection.node

selection.size

Local Variables

d3.local

local.set

local.get

local.remove

local.toString

TODO: Do you want anything below this point?

Basic Example

<!DOCTYPE html>
<html>
  <head>
    <title>My D3 Demo</title>
    <script src="http://d3js.org/d3.v3.min.js"></script>
  </head>
  <body>
    <p>This is a paragraph.</p>

    <script>
      // To change the text in the p element above ...
      d3.select('p').text('Hello, World!');

      // To add a p element including text to the body ...
      d3.select('body').append('p').text('Hello, World!');
    </script>
  </body>
</html>

API Basics

To select the first occurrence of an element with a given name inside a parent element
.select(childElementName)`

To select all occurrences of elements with a given name inside a parent element
.selectAll(childElementName)`

To append a new element with a given name to a parent element
.append(elementName)`

To set an attribute on an element
.attr(property, name)`

To get the value of an attribute on an element
.attr(property>)`

For example, to translate an element such as an SVG g(for group),
.attr('transform', 'translate(100, 50))`

To set a CSS style property on an element
.style(property, name)

To add a CSS class to an element
// replaces value of class attribute .attr('class', 'className') or // updates value of class attribute .classed(className, true)

To set the text content of an element
.text(textValue, true)

To set the HTML content of an element
.html(htmlString, true)

For example:

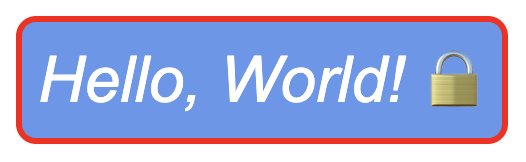

DOM Basics

<html>
  <head>
    <title>D3 DOM basics</title>
    <script src="https://d3js.org/d3.v5.min.js"></script>

    <style>
      .bordered {
        border: solid orange 3px;
        border-radius: 10px;
        padding: 0.5rem;
      }

      button {
        font-size: 2rem;
      }

      button:disabled {
        border-color: red;
      }
    </style>
  </head>
  <body>
    <script>
      const lockUnicode = '&#x1F512;';
      d3.select('body')
        .append('button')
        .attr('disabled', 'true')
        .classed('bordered', true)
        .style('background-color', 'cornflowerblue')
        .style('color', 'white')
        .html('<i>Hello, World!</i> ' + lockUnicode);
    </script>
  </body>
</html>
