LÖVE

Overview

LÖVE is "an awesome framework you can use to make 2D games in Lua. It's free, open-source, and works on Windows, Mac OS X, Linux, Android and iOS."

LÖVE can be downloaded from the previous link.

LÖVE use LuaJIT which mostly only supports Lua 5.1. It includes some Lua 5.2 and 5.3 features.

Resources

Documentation

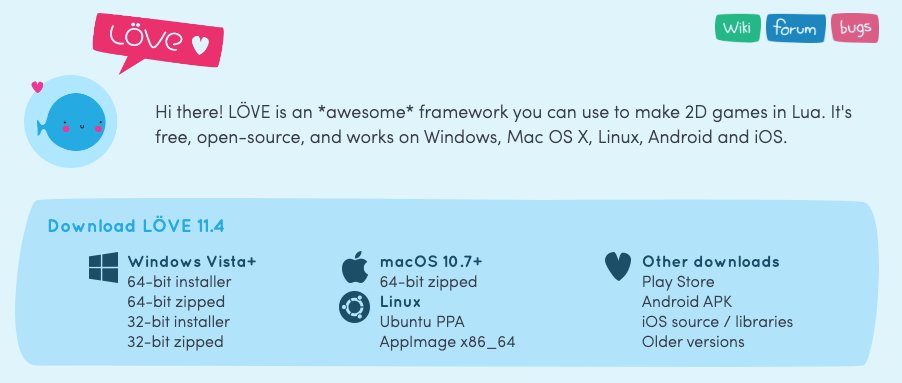

The LÖVE home page is shown below:

LÖVE Home Page

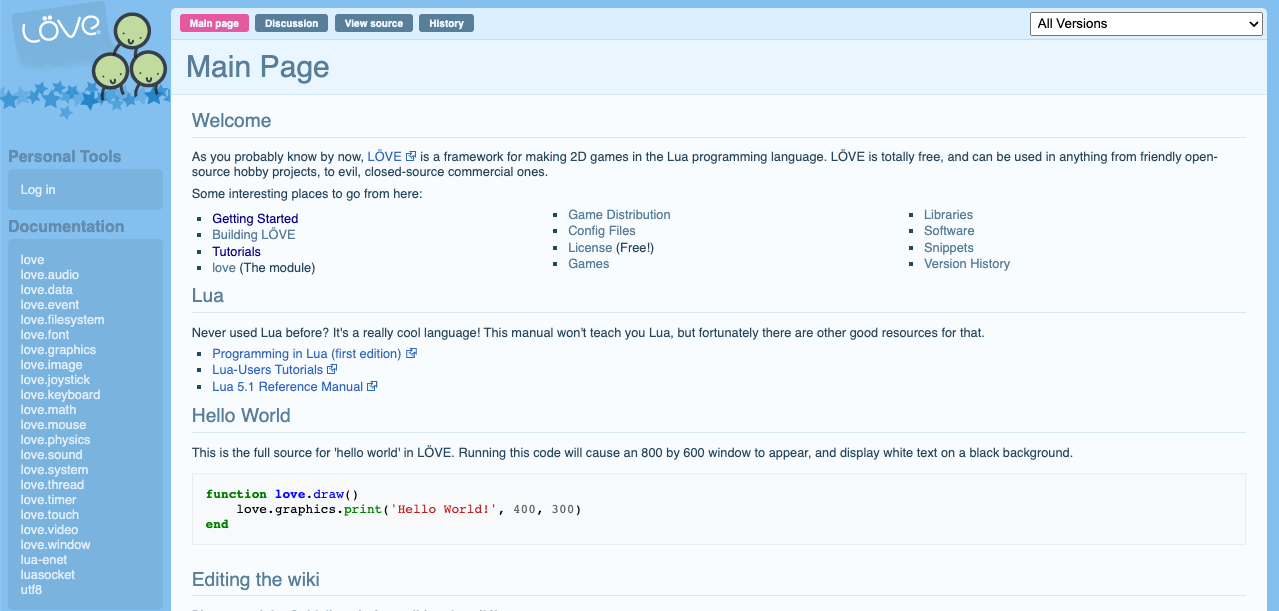

Clicking the "Wiki" button in the upper-right navigates to the following page:

LÖVE Wiki

Click a module name in the left nav to see documentation on all of its functions.

Installing

For macOS:

Getting Started

To creating a new LÖVE app:

For a list of additional configuration options, see Config Files.

LÖVE apps always define the functions love.load(), love.draw(), and love.update(dt) in their main.lua file. The love.load() function performs initial game setup. The love.draw() function specifies what should be drawn on the screen at any point in time. The love.update(dt) function implements the game logic.

Variables whose values never change can be defined at the top level before the love.load function. Variables whose values change while the app runs can be declare as local at the top level, but should be set in the love.load function.

The love.draw and love.update functions are typically called 60 times per second (frame rate). The vsync option can be set to synchronize the frame rate with the refresh rate of the monitor. It can be set in the conf.lua file with t.window.vsync = 1. Alternatively it can be passed as an argument to the love.graphics.setMode function.

The parameter dt in the love.update function is short for "delta time". This is used to make game updates frame rate independent. It is a floating point number that indicates the number of seconds requires to display each frame. This value can vary among devices. For example, when dt is 0.1, the device displays 10 frames per second.

Running

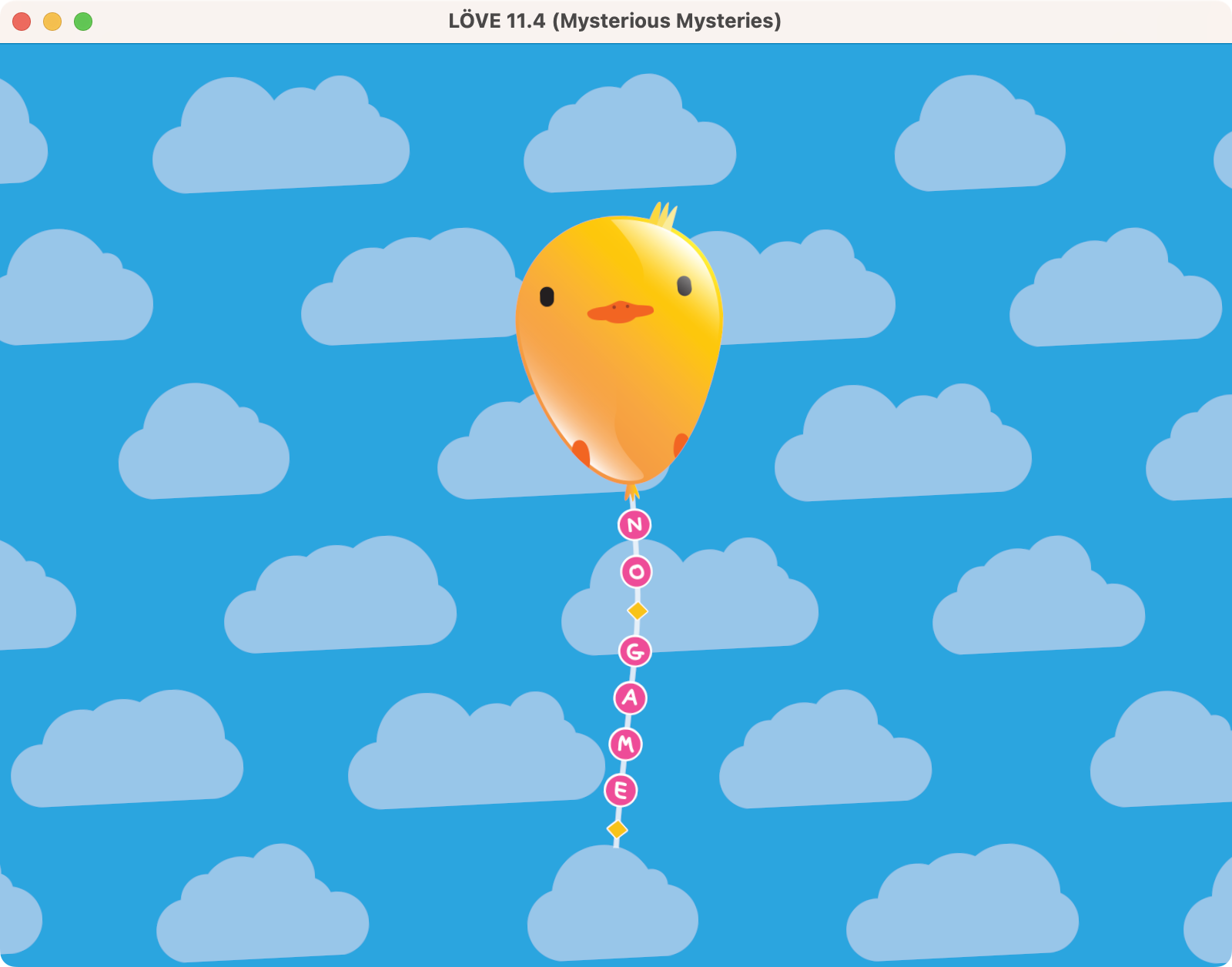

The initial source file must be named main.lua. When the LÖVE app is run without this file, a window matching the screenshot below is displayed.

LÖVE No Game

Note that the kite tail on the balloon says "NO GAME".

There are many ways to run a LÖVE app:

Bundling

The source code and asset files (fonts, sounds, and images) can be bundled into a single file that can be double-clicked to run the app. To do this, create a zip file containing all the required files and make its extension .love.

Some projects contain files in the top project directory (such as shell scripts and documentation) that should not be included in the bundle file. To accommodate this, consider moving all the .lua and asset files into a subdirectory named src.

Create a shell script named bundle in the top directory of the project containing the following where {project-name} is replaced by the name of the project:

#!/usr/bin/env zsh
rm -f {project-name}.love
pushd src
zip -r ../{project-name}.love *
popd

Make the bundle script executable by entering chmod a+x bundle.

Enter ./bundle to bundle the app into a .love file. Double-click this file to run the app locally.

Auto-Restarts

It is convenient to configure the app to restart any time a file within the project is modified. The Lua module lurker is perfect for this!

To configure this:

  1. Download the file lurker.lua into the project directory.

  2. Download the file lume.lua into the project directory.

  3. Add the following lines near the top of main.lua:

    local lurker = require "lurker"
    lurker.postswap = function() love.event.quit "restart" end

  4. Add the following line at the end of the love.update function:

    lurker.update()

Now when the app is run it will watch for changes to files within the project and restart the app when a change is detected. One issue with this is that every time the game is restarted, focus will move from the code editor to the game.

Colors

The current color can be set using love.graphics.setColor(red, green, blue, alpha) where all the arguments are floating point numbers from 0 to 1. The color parameters are required. The alpha parameter can be omitted and defaults to 1. This remains in effect until it is changed again and affects many things that are drawn including text and shapes.

The setColor function can also be passed an array-like table of color values.

The following function can be used to convert color values in the range 0 to 255 into the range 0 to 1:

local function rgb(red, green, blue)
  return red / 255, green / 255, blue / 255
end

Consider defining all the colors that the app will need on startup and holding them in a table. For example:

return {
  black = { 0, 0, 0 },
  blue = { 0, 0, 1 },
  brown = { rgb(150, 75, 0) },
  gray = { rgb(150, 150, 150) },
  green = { 0, 1, 0 },
  purple = { rgb(148, 0, 211) },
  red = { 1, 0, 0 },
  white = { 1, 1, 1 },
  yellow = { 1, 1, 0 }
}

To use one of these colors later, use love.graphics.setColor(colors.yellow).

The following function can be used to generate a random color:

function randomColor()
  local r = math.random()
  local g = math.random()
  local b = math.random()

  -- This makes sure the color isn't too dark.
  local total = r + g + b
  return total >= 1 and { r, g, b } or randomColor()
end

Fonts

LÖVE uses the font "Bitstream Vera Sans" by default. Any font types supported by loFreeType 2 can be also be used. This includes TrueType, WOFF, and many others.

To create a font object, use local myFont = love.graphics.newFont(fontFilePath, fontSize).

To change the current font, use love.graphics.setFont(myFont). This remains in effect until it is changed again. It affects what is rendered by love.graphics.print(text, x, y). and love.graphics.printf(text, x, y, limit, align). The latter differs in that it provides word wrapping and alignment.

Consider creating all the Font objects that the app will need on startup and holding them in a table. For example:

local fonts = {
  default = g.newFont("Pangolin-Regular.ttf", 18),
  button = g.newFont("Pangolin-Regular.ttf", 30)
}

To use one of these fonts later, use love.graphics.setFont(fonts.button, x, y).

Images

LÖVE supports the image formats jpg, png, bmp, and many others. It does not support gif files

To create an Image object:

local monkey = love.graphics.newImage('images/monkey.png')

To draw an image at a given x,y location, use love.graphics.draw(monkeyImage, x, y).

The draw function also takes argments for the rotation, x scale, y scale, origin x offset, origin y offset.

Consider creating all the Image objects that the app will need on startup and holding them in a table. For example:

local image = {
  monkey = love.graphics.newImage('images/monkey.png'),
  banana = love.graphics.newImage('images/banana.png'),
}

To draw one of these images later, use love.graphics.draw(images.monkey, x, y).

Sounds

LÖVE supports the sound formats mp3, ogg, wav, and many others.

To create a sound, specify its file path and source type as follows:

local mySound = love.audio.newSource("sounds/my-sound.mp3", "static")

The last argument is the source type. "static" is preferred for short sounds. "stream" is the default and is preferred for longer sounds because it avoids holding the entire sound in memory.

To play a sound, use mySound:play().

To cause a sound to loop continuously, use mySound:setLooping(true) before playing it.

To stop a sound, use mySound:stop().

To temporarily pause a sound, use mySound:pause(). To resume it later, use mySound:resume().

Consider creating all the sound Source objects that the app will need on startup and holding them in a table. For example:

local sounds = {
  success = love.audio.newSource("sounds/success.mp3", "static"),
  failure = love.audio.newSource("sounds/failure.mp3", "static"),
  song = love.audio.newSource("sounds/song.mp3")
}

To play one of these sounds later, use sounds.success:play().

To allow multiple occurrences of the same sound to play simultaneously, clone it and play the clone. For example:

local clone = sounds.failure:clone()
clone:play()

Graphics

The love.graphics module provides many functions for drawing. To simplify calling functions from the submodules of the love module, create and use variables like these to refer to the functions:

local g = love.graphics
local p = love.physics

Frame Rate

To display the frames per second being rendered add code like the following in the love.draw function:

love.graphics.print("FPS: " .. love.timer.getFPS(), 10, 5)

Cursor

The following code draws a circle at the cursor position when placed in the love.draw function:

love.graphics.setColor(colors.yellow)
love.graphics.circle("fill", x, y, 10) ]]

Keys

There are multiple ways to process key presses.

One way is to write the function love.keypressed. For example, the following code causes the app to be restarted when the escape key is pressed.

function love.keypressed(k)
  if k == "escape" then love.event.quit("restart") end
end

Another way is to use the love.keyboard.isDown function. This takes arguments that are the key names to check and returns a boolean indicating if any of them are down. A table that maps key names to functions that should be called when they are pressed can be defined as follows:

local keyMap = {
  left = function() dec(monkeyPosition, "x") end,
  right = function() inc(monkeyPosition, "x") end,
  up = function() dec(monkeyPosition, "y") end,
  down = function() inc(monkeyPosition, "y") end
}

Then add code like the following in the love.update function:

  -- Process keys being held down.
  for key, fn in pairs(keyMap) do
    if love.keyboard.isDown(key) then fn() end
  end

Mouse Clicks

There are several ways to process mouse clicks.

One way is to write the function love.mousepressed. For example, the following code causes the app to be restarted when the escape key is pressed.

function love.mousepressed(x, y, button)
  -- button holds the number of the mouse button that was pressed
  -- where 1 is the left mouse button.
  if button ~= 1 then return end -- only processing left clicks

  -- For all shapes that should process mouse clicks,
  -- determine whether (x,y) is on the shape
  -- and execute the appropriate code if it is.
end

Another may is to use the love.mouse.isDown function. This takes arguments that are the button numbers to check and returns a boolean indicating if any of them are down.

Mouse Cursor

The following code hides the default mouse cursor and display an image in its place.

love.mouse.setVisible(false)

local x, y = love.mouse.getPosition()
local h = monkeyImage:getHeight()
local w = monkeyImage:getWidth()
g.draw(monkeyImage, x - w/2, y - h/2)

Background Scrolling

A single image can be scrolled across the background in any direction. It is best if the image being scrolled is pre-scaled so one of its dimensions matches the corresponding window dimension. For example, for horizontal scrolling the image height should match the window height. It order to achieve seamless scrolling, the opposite edges should match.

For example:

local love = require "love"

local backgroundPosition
local backgroundSpeed = 100
local g = love.graphics
local image = love.graphics.newImage("background.jpg")

-- When t.window.width and t.window.height are not set,
-- love.graphics.getDimensions() returns the screen width and height.
local windowWidth, windowHeight = g.getDimensions()

function love.load()
    backgroundPosition = 0
end

function love.draw()
    -- To scroll vertically ...
    -- love.graphics.draw(image, 0, backgroundPosition)
    -- love.graphics.draw(image, 0, backgroundPosition - windowHeight)

    -- To scroll horizontally ...
    g.draw(image, backgroundPosition, 0)
    g.draw(image, backgroundPosition - windowWidth, 0)
end

function love.update(dt)
    -- To scroll vertically ...
    -- backgroundPosition = (backgroundPosition + backgroundSpeed * dt) % image:getHeight()

    -- To scroll horizontally ...
    backgroundPosition = (backgroundPosition - backgroundSpeed * dt) % windowWidth
end

function love.keypressed(key)
    if key == "escape" then
        love.event.quit()
    end
end

Calling Functions Later

The following code can be used to schedule functions to be called later.

local socket = require "socket"

local laters = {}

-- This schedules a function to run a given number of seconds later.
function later(fn, seconds)
  -- os.time() only returns the time in seconds as an integer.
  -- socket.gettime() is similar but returns
  -- a floating point value for subsecond precision.
  laters[fn] = socket.gettime() + seconds
end

-- Call this near the beginning of love.update.
function processLaters()
  for fn, time in pairs(laters) do
    if time <= os.time() then
      laters[fn] = nil
      fn()
    end
  end
end

Tweening

Tweening is the process of gradually changing a value over time. It is often used to implement animations. The values changed can include the coordinates of an item on the screen, the size of an item, a font size, a sound volume, and more. Typically an easing function is selected to control the rate of change over the duration.

There are several libraries that implementing tweening. One example is tween.lua.

To install this, copy the tween.lua from the link above into your project.

The following example tweens the location of a piece of text. The text decreases in font size as it drops down the screen and bounces when it reaches the bottom.

-- Describe the subject which is the thing to be tweened.
-- x and y define the starting location.
local label = { text = "TWEENING!", fontSize = 60, x = 100, y = 0, }

-- Define the tween.  The arguments are the duration in seconds,
-- the subject, the target, and the easing function.
-- The target is the set of properties be modified during the tween.
-- Any number of properties can be modified.
local labelTween = tween.new(
  4,
  label,
  { fontSize = 20, y = windowHeight - 28 },
  'outBounce'
)

-- Draw the thing being tweened using its current properties
-- in the "love.draw" function.
love.graphics.setFont(g.newFont("Pangolin-Regular.ttf", label.fontSize))
love.graphics.print(label.text, label.x, label.y)

-- Update the properties of the thing being tweened
-- in the "love.update" function.
labelTween:update(dt)

Physics

The love.physics module provides many functions that wrap the functionality of Box2D which is a C++-based 2D physics engine. Box2D was created by Erin Catto who works at Blizzard Games. Box2D is used by many games including Angry Birds.

For an example project that uses love.physics, see Monkey Nim.

Deploying

LÖVE apps can be deployed to Windows, macOS, Linux, Android, and iOS. Details can be found at Game Distribution.

Web

One way to deploy a LÖVE app to the web is to use love.js. This uses Emscripten to compile the C code from Lua and LÖVE to WebAssembly so it can be run in web browsers.

Generate a web application from a LÖVE project in the current directory with the following steps. This creates the subdirectory web containing many generated files.

Create a web server that sets the appropriate HTTP headers to enable use of SharedArrayBuffer with the following steps:

Start the web server and run the game with the following steps:

If running the app results in the error "Uncaught RangeError: offset is out of bounds", try adding the --memory flag to the npx love.js command in order to allow it to use more memory. The default is 16,777,216 bytes.

During development it will be necessary to rebuild the web app and restart the web server many times. The following shell script automates those tasks. Consider naming it websrv and make it executable.

#!/usr/bin/env zsh

rm -rf web
npx love.js src web
pushd server
node server.js
popd

To run this, enter ./websrv.

iOS

The YouTube video Build LOVE2D for iOS iPhone, iPad, iPod Touch walks through the steps to deploy a LÖVE app to iOS. This must be done in macOS.

The following steps create a default iOS project and run it:

  1. If not already installed, install Xcode.

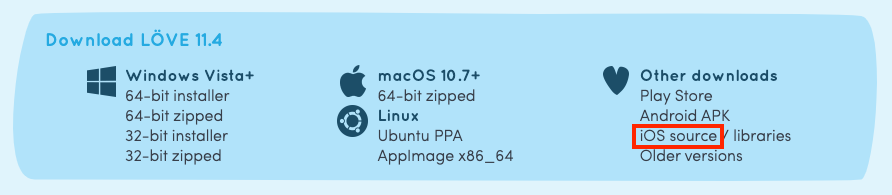

  2. Download iOS source by clicking the "iOS source" link in the Download section of the LÖVE home page. LÖVE iOS Source
  3. Double-click the downloaded file to unzip it.
  4. Move this directory to its desired location and rename it.
  5. In the Finder, navigate to platform/xcode.
  6. Double-click the file love.xcodeproj to open it in Xcode.
  7. Select a simulator device.
  8. Build and run the app.
  9. In the simulator, tap "No-game screen" to see the default "NO GAME" screen.

The following steps customize the default project to run your game.

  1. Enter ./bundle to bundle the LÖVE project into a .love file. (See the "Bundling" section above.)
  2. Back in Xcode, select the top-most project navigator item to edit the LÖVE project.
  3. Select the "love.ios" target.
  4. Select the "General" tab.
  5. In the "Identity" section, enter a "Display Name". TODO: Why is the displayed app name "love" instead of this value?
  6. In the "Deployment Info" section under "iPhone Orientation", consider only checking "Portrait".
  7. Select the "Signing & Capabilities" tab.
  8. In the "Team" dropdown, select your development team.
  9. Change the bundle identifier to uniquely identify your project.
  10. Select the "Build Phases" tab.
  11. Expand the "Copy Bundle Resources" section.
  12. Click the "+" button, click the "Add Other..." button, and add your .love zip file.
  13. Check the "Copy items if needed" checkbox.
  14. Select the "Create folder references" radio button.
  15. Click the "Finish" button.

To run the app on a real device:

  1. Attach the device to the mac with a USB cable.
  2. Select the device from the device menu.
  3. Build and run the project.

To size the window appropriately, add the following settings in the conf.lua file:

  t.window.width = 393  -- third of 1179 (iPhone 14 Pro width)
  t.window.height = 852 -- third of 2556 (iPhone 14 Pro height)

To change the app icon, use Xcode to replace the images in the file Images.xcassets.

  t.window.width = 590   -- half of 1179 (iPhone 14 Pro width)
  t.window.height = 1276 -- half of 2556 (iPhone 14 Pro height)

After making changes to the Lua code, enter ./bundle again to create a new .love file and then re-run the iOS project.

If no sounds play, it is likely because the phone mute switch is on.

Optimizations

When comparing the distance between two points to some value, compare the square of the distance. This removes the need to use the math.sqrt function which can hurt game performance.
