Overview
iOS 16 introduced the Layout protocol and the AnyLayout struct.
See the excellent YouTube videos from Stewart Lynch, AnyLayout and Custom Layouts in iOS 16.
Example App
See AnyLayoutDemo which demonstrates everything shared in the Steward Lynch video linked above.
Layout Protocol
The Layout protocol "defines the geometry of a collection of views". It is useful in apps that need view layouts that cannot be easily achieved using standard container views like HStack and VStack.
SwiftUI provides three structs that conform to the Layout protocol. These take alignment and spacing arguments that customize the layout.
Custom layouts that conform to the Layout protocol can also be created. The following code provides a heavily commented example derived from the Stewart Lynch video:
import SwiftUI
/**
This is a custom layout that is a variation on VStackLayout.
Child views are referred to as "subviews".
Subviews that have even indexes (0, 2, ...) are left-aligned.
Subviews that have odd indexes (1, 3, ...) are also left-aligned,
but are indented in by the width of the widest even subview.
*/
struct AlternateStackLayout: Layout {
// This is used to share data between methods in the `Layout` protocol.
struct Cache {
let maxEvenWidth: CGFloat
let maxOddWidth: CGFloat
let sizes: [CGSize]
}
// This is called first in order to computed data
// that can be used by the other methods.
func makeCache(subviews: Subviews) -> Cache {
// Get the size of each subview.
// The type is `[CGSize]`.
// `CGSize` has `width` and `height` properties.
let sizes = subviews.map { $0.sizeThatFits(.unspecified) }
// Get the maximum width of the even subviews
// and the maximum width of the odd subviews.
var maxEvenWidth = 0.0
var maxOddWidth = 0.0
var isEven = true
for size in sizes {
let width = size.width
if isEven {
if width > maxEvenWidth { maxEvenWidth = width }
} else {
if width > maxOddWidth { maxOddWidth = width }
}
isEven.toggle()
}
return Cache(
maxEvenWidth: maxEvenWidth,
maxOddWidth: maxOddWidth,
sizes: sizes
)
}
// This is called before `placeSubviews`.
// It determines the container width and height required to
// hold all the subviews in their computed locations.
func sizeThatFits(
proposal: ProposedViewSize, // seems to be the entire screen size
subviews: Subviews,
cache: inout Cache
) -> CGSize {
subviews.isEmpty ? .zero : CGSize(
width: cache.maxEvenWidth + cache.maxOddWidth,
height: cache.sizes.map { $0.height }.reduce(0, +)
)
}
// This is called after `sizeThatFits`.
// It places each subview at a computed x, y location with a proposed size.
func placeSubviews(
in bounds: CGRect,
proposal: ProposedViewSize, // seems to be the entire screen size
subviews: Subviews,
cache: inout Cache
) {
// If there are no subviews then there is no work to be done.
// guard !subviews.isEmpty else { return }
// Determine the `x` values for even and odd subviews.
let evenX = bounds.minX
let oddX = bounds.minX + cache.maxEvenWidth
// Determine the `y` value of the first subview.
var y = bounds.minY
var x = evenX
for (subview, size) in zip(subviews, cache.sizes) {
subview.place(
at: CGPoint(x: x, y: y),
anchor: .topLeading,
proposal: ProposedViewSize(size)
)
// The next subview will use the other x value.
x = x == evenX ? oddX : evenX
// The y value for the next subview will greater than
// the y value of this subview by the height of this subview.
y += size.height
}
}
}AnyLayout Struct
The AnyLayout struct is a type-erased instance of the Layout protocol. AnyLayout is used "to enable dynamically changing the type of a layout container without destroying the state of the subviews".

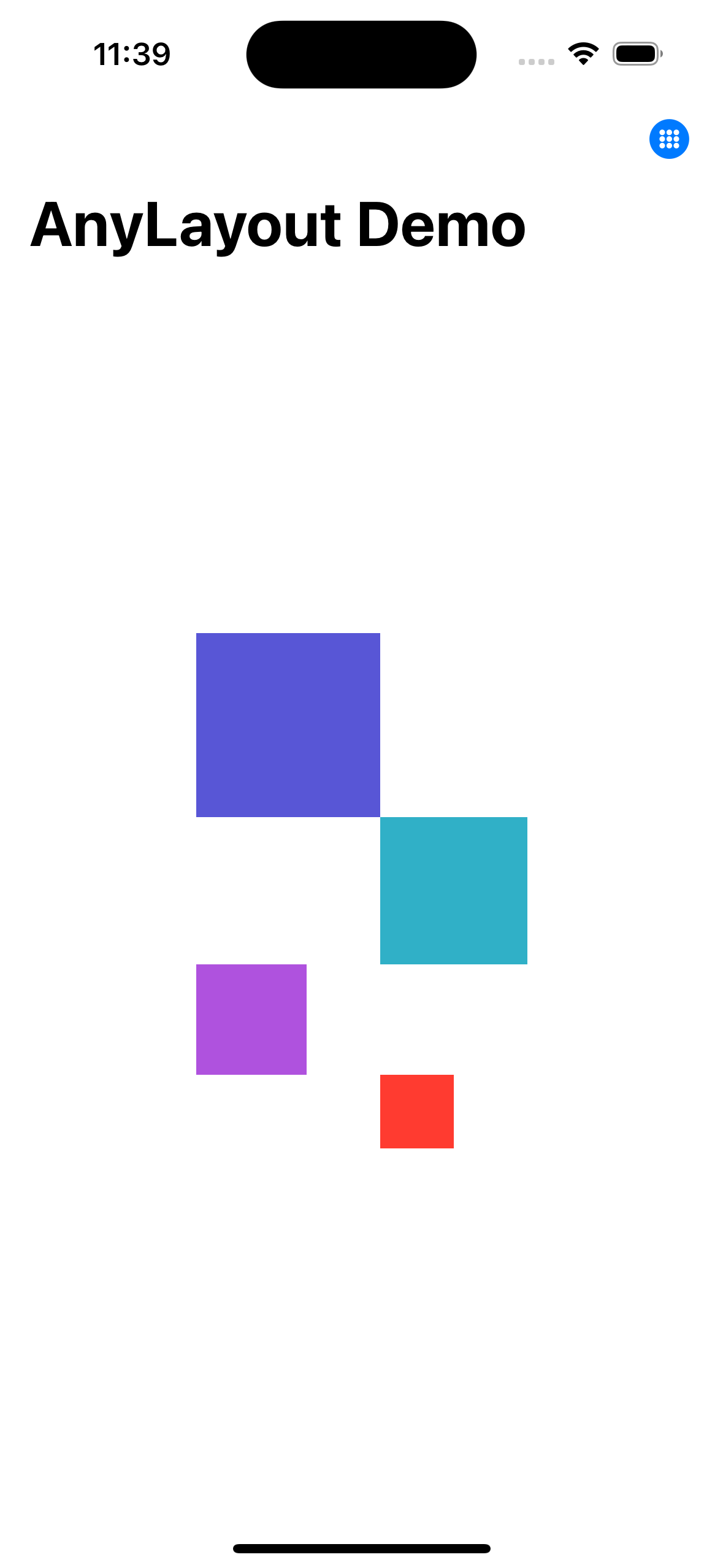

The following code displays a series of rectangles and uses AnyLayout to allows the user to toggle between the three provided layouts and the custom layout implemented above. This code is also derived from the Stewart Lynch video.
import SwiftUI
struct ContentView: View {
@State private var layoutType = LayoutType.h
enum LayoutType: Int, CaseIterable {
case h, v, z, alt
var index: Int {
Self.allCases.firstIndex(where: { $0 == self })!
}
var layout: any Layout {
switch self {
case .h: return HStackLayout(alignment: .top, spacing: 0)
case .v: return VStackLayout(alignment: .leading, spacing: 0)
case .z: return ZStackLayout(alignment: .topLeading)
case .alt: return AlternateStackLayout()
}
}
}
struct Box {
let color: Color
let width: CGFloat
let height: CGFloat
}
private let boxes = [
Box(color: .indigo, width: 100, height: 100),
Box(color: .teal, width: 80, height: 80),
Box(color: .purple, width: 60, height: 60),
Box(color: .red, width: 40, height: 40)
]
var body: some View {
NavigationStack {
AnyLayout(layoutType.layout) {
ForEach(boxes, id: \.color) { box in
box.color.frame(
width: box.width,
height: box.height
)
}
}
.padding()
.navigationTitle("AnyLayout Demo")
.animation(.default, value: layoutType)
.toolbar {
ToolbarItem(placement: .navigationBarTrailing) {
Button(
action: {
let cases = LayoutType.allCases
layoutType =
cases[(layoutType.index + 1) % cases.count]
},
label: {
Image(systemName: "circle.grid.3x3.circle.fill")
.imageScale(.large)
}
)
}
}
}
}
}Radial Layout

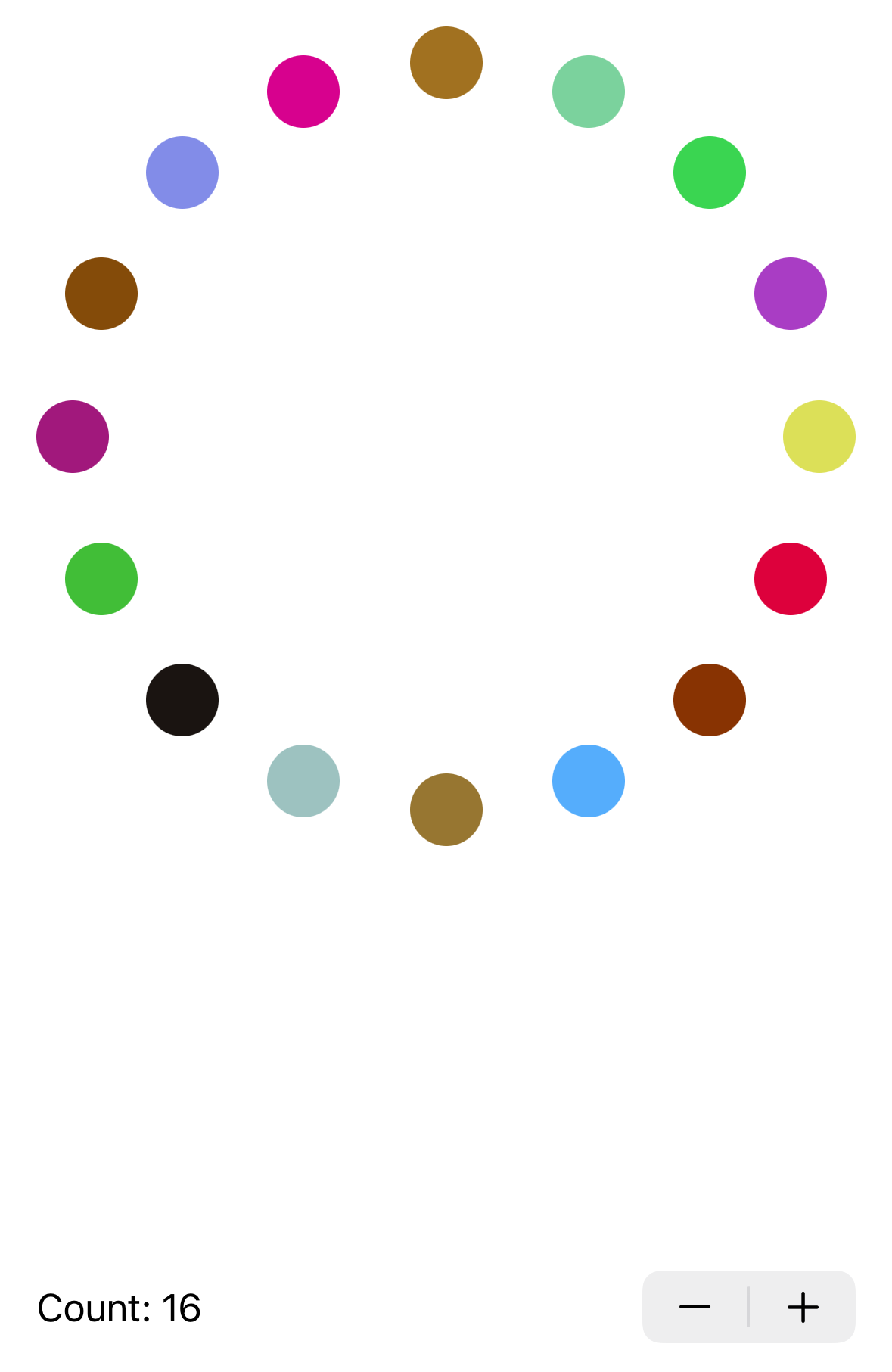

Paul Hudson provided an excellent example of implementing a custom layout in his post How to create a custom layout using the Layout protocol It arranges a set of circles in a circular pattern.
The following code is my modified version of his example. It adds a random color to each of the circles and keeps the same color for each when the number of circles is changed.
public extension Color {
static func random() -> Color {
Color(
red: .random(in: 0 ... 1),
green: .random(in: 0 ... 1),
blue: .random(in: 0 ... 1),
opacity: 1
)
}
}
struct RadialLayout: Layout {
// This "assigns positions to the container’s subviews."
func placeSubviews(
in bounds: CGRect,
proposal: ProposedViewSize,
subviews: Subviews,
cache: inout Void
) {
// Get half the smallest dimension to use as the circle radius.
let radius = min(bounds.size.width, bounds.size.height) / 2
// Get the angle between each subview.
let deltaAngle = Angle.degrees(360 / Double(subviews.count)).radians
for (index, subview) in subviews.enumerated() {
let idealSize = subview.sizeThatFits(.unspecified)
// Get the offset from the circle center
// that would place the subview on the circle.
let angle = deltaAngle * Double(index) - .pi / 2
let dx = cos(angle) * (radius - idealSize.width / 2)
let dy = sin(angle) * (radius - idealSize.height / 2)
// Calculate the subview position within the parent view.
let position = CGPoint(x: bounds.midX + dx, y: bounds.midY + dy)
// Place the subview at the calculated position.
subview.place(at: position, anchor: .center, proposal: .unspecified)
}
}
// This "reports the size of the composite layout view."
func sizeThatFits(
proposal: ProposedViewSize,
subviews: Subviews,
cache: inout Void
) -> CGSize {
// "Creates a new proposal that replaces
// unspecified dimensions in this proposal with
// the corresponding dimension of the specified size."
proposal.replacingUnspecifiedDimensions()
}
}
struct ContentView: View {
@State private var count = 16
@State private var colors: [Color] = []
init() {
_colors = State(initialValue: getColors(count: count))
}
var body: some View {
RadialLayout {
ForEach(0 ..< count, id: \.self) { index in
let color = index < colors.count ? colors[index] : .black
Circle()
.foregroundColor(color)
.frame(width: 32, height: 32)
}
}
.padding()
.safeAreaInset(edge: .bottom) {
// This allows the user to change the number of subviews
// and animates the change.
Stepper("Count: \(count)", value: $count.animation(), in: 0 ... 36)
.onChange(of: count) { _ in
ensureColors()
}
}
}
private func ensureColors() {
let missingCount = count - colors.count
guard missingCount > 0 else { return }
colors.append(contentsOf: getColors(count: missingCount))
}
private func getColors(count: Int) -> [Color] {
var colors: [Color] = []
for _ in 0 ..< count {
colors.append(.random())
}
return colors
}
}
