MapKit

TODO

Add content from MapKit Beginner's Guide: Polylines, Polygons, and Callouts

Overview

MapKit enables embedding maps in apps. Users can pan and zoom to adjust their view of the map. The maps can contain markers that can be tappable to invoke app-specific actions.

Resources

Getting Started

To enable use of MapKit in a project:

Example App

See the demo apps at MapKitForSwiftUI (iOS 17+) and swiftui-mapkit.

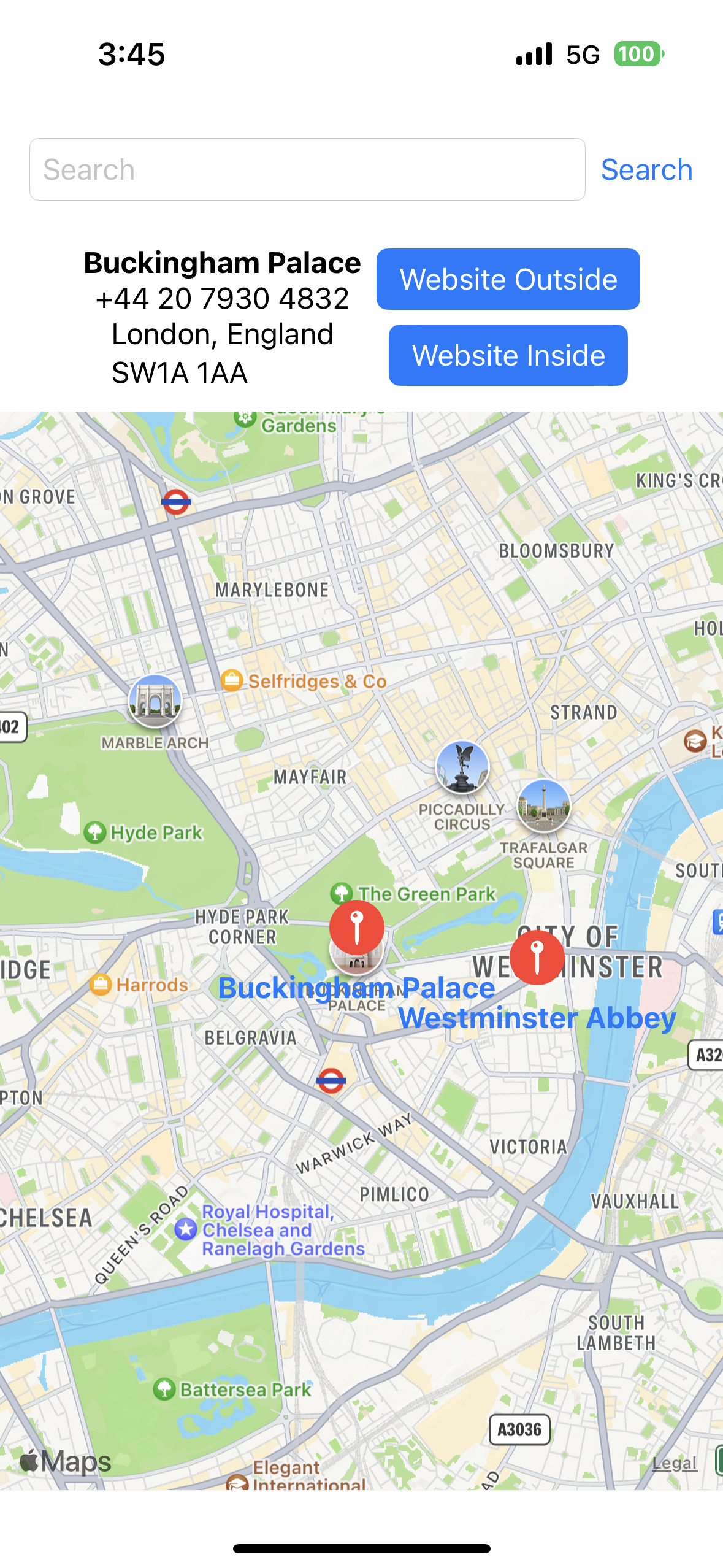

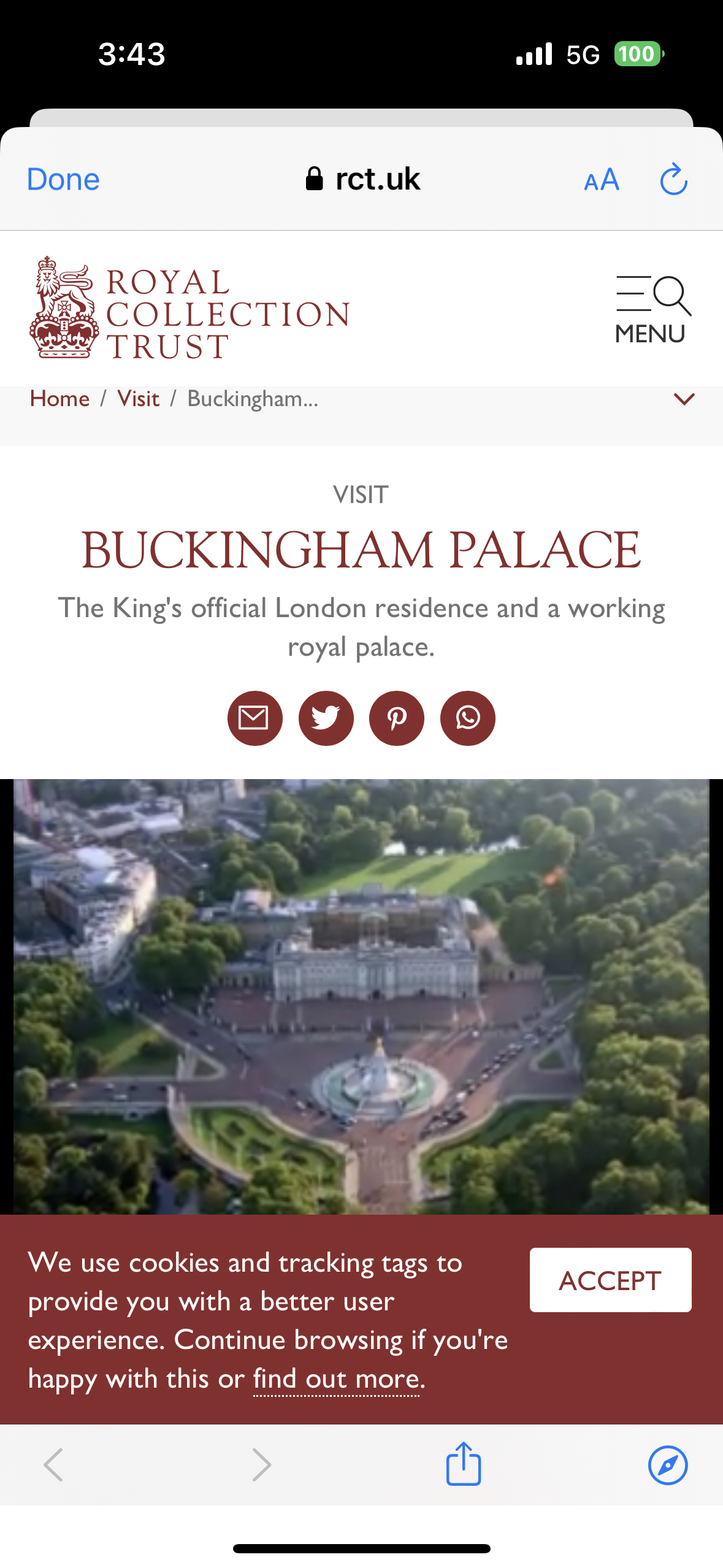

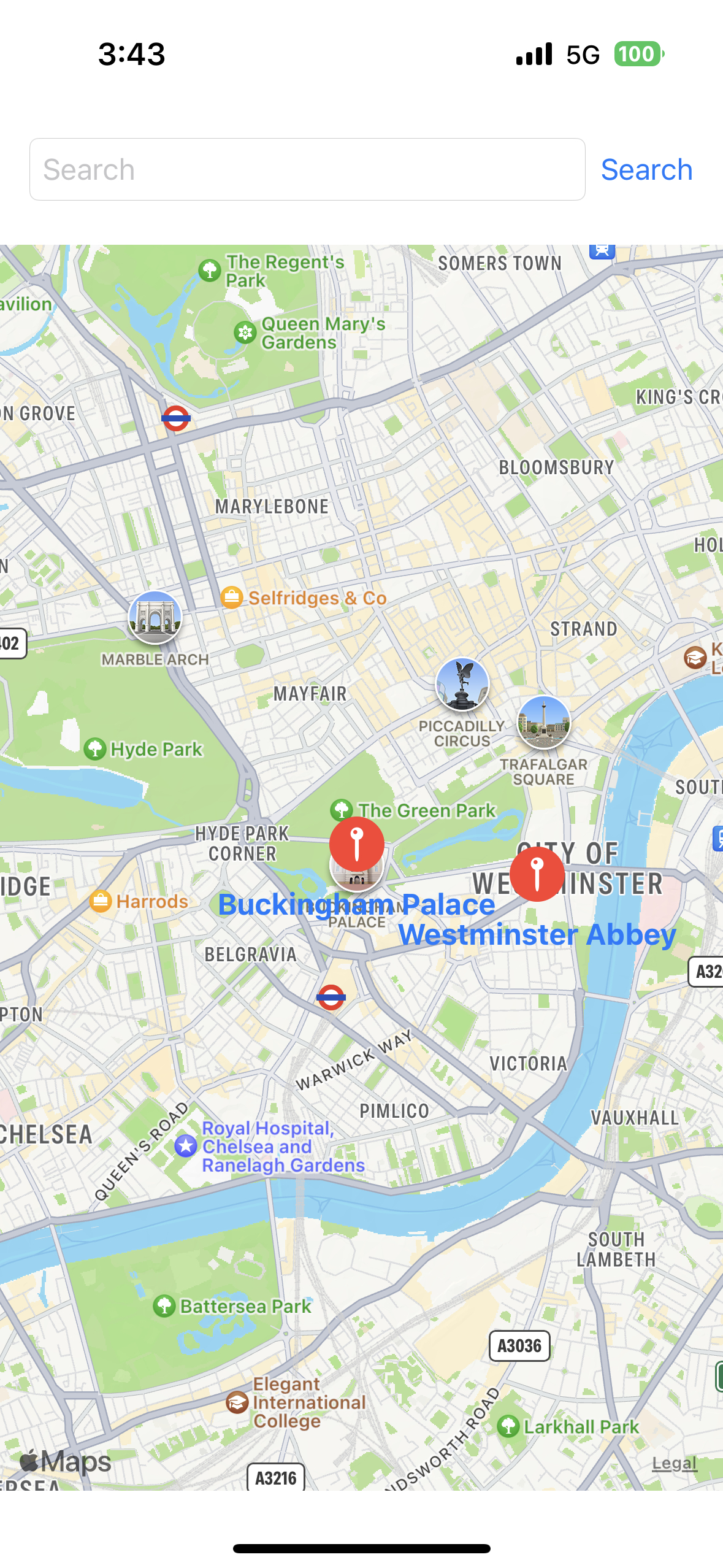

MapKit iOS 17+ MapKit Initial MapKit Selected Place MapKit Browse Place

Basic Map Display

To enable use of MapKit in a SwiftUI app:

The following class defines a view model that is used to get the current location of the user.

import CoreLocation
import SwiftUI

class LocationManager: NSObject, ObservableObject, CLLocationManagerDelegate {
    @Published var error: Error?
    @Published var location: CLLocationCoordinate2D?
    let manager = CLLocationManager()

    override init() {
        super.init()
        manager.delegate = self
    }

    func requestLocation() {
        manager.requestLocation()
    }

    func locationManager(
        _ manager: CLLocationManager,
        didUpdateLocations locations: [CLLocation]
    ) {
        location = locations.first?.coordinate
    }

    func locationManager(
        _ manager: CLLocationManager,
        didFailWithError error: Error
    ) {
        self.error = error
    }
}

The CLLocationCoordinate2D struct from the Core Location framework does not conform to the Equatable protocol. We need it to do that in order to listen for changes to a location using the onChange view modifier. The following extension fixes this.

extension CLLocationCoordinate2D: Equatable {
    public static func == (
        lhs: CLLocationCoordinate2D,
        rhs: CLLocationCoordinate2D
    ) -> Bool {
        lhs.latitude == rhs.latitude && lhs.longitude == rhs.longitude
    }
}

The following view displays a Map that begins by showing Apple Park. The user can tap "Current Location" button to obtain their latitude and longitude. The map then updates to centered on that location. From there the user can pan and zoom the map. To reset the map to be centered on their current location, the user can tap the "Return" button.

struct ContentView: View {
    private static let appleParkLatitude = 37.334_900
    private static let appleParkLongitude = -122.009_020
    private static let meters = 750.0

    @State private var region = MKCoordinateRegion(
        center: CLLocationCoordinate2D(
            latitude: Self.appleParkLatitude,
            longitude: Self.appleParkLongitude
        ),
        latitudinalMeters: Self.meters,
        longitudinalMeters: Self.meters
    )

    @StateObject var locationManager = LocationManager()

    init() {
        // This has no effect.
        MKMapView.appearance().mapType = .hybrid
    }

    func panToCurrentLocation() {
        guard let location = locationManager.location else { return }
        Task { @MainActor in
            region.center = location
        }
    }

    var body: some View {
        VStack {
            HStack {
                // To change the text displayed in a `LocationButton`
                // pass it one of the following enum values:
                // `.currentLocation` - "Current Location" (default)
                // `.sendCurrentLocation` - "Send Current Location"
                // `.sendMyCurrentLocation` - "Send My Current Location"
                // `.shareCurrentLocation` - "Share Current Location"
                // `.shareMyCurrentLocation` - "Share My Current Location"
                LocationButton {
                    locationManager.requestLocation()
                }
                .foregroundColor(.white) // defaults to black
                Spacer()
                if locationManager.location != nil {
                    Button("Return") {
                        panToCurrentLocation()
                    }
                    .buttonStyle(.bordered)
                }
            }

            // Display the current location.
            // This updates if the user pans the map.
            let center = region.center
            Text("Lat: \(center.latitude), Lng: \(center.longitude)")

            // A binding must be passed so it can be
            // modified if the user pans or zooms the map.
            Map(coordinateRegion: $region, showsUserLocation: true)

            Spacer()
        }
        .padding()
        .onChange(of: locationManager.location) { _ in
            panToCurrentLocation()
        }
    }
}

The Map view currently lacks many features found in MKMapView. One example is the ability to display a satellite view. Until Map becomes more full-featured, it is useful to wrap MKMapView in UIViewRepresentable to enable it to be used with SwiftUI in place of Map. Code to do this can be found in my UIKit blog page.

Distance vs. Angle

Some MapKit methods require passing distances in meters and others require passing distances in latitude and longitude deltas which are angles.

A latitude value specifies the north (positive) or south (negative) angle from the equator which circles the Earth midway between the north and south poles. The latitude is zero degrees at the equator, 90 degrees at the north pole, and -90 degrees at the south pole. Positive values are sometimes followed by "N" for North. Negative values are sometimes written without the minus sign and are following by "S" for South.

A longitude value specifies the east (positive) or west (negative) angle from the Prime Meridian (Greenwich) which runs from the north to south pole, passing through the Royal Observatory in Greenwich, England (near London). The longitude is zero degrees at the Prime Meridian, -180 degrees moving halfway around the Earth to the west, and 180 degrees moving halfway around the Earth to the east. Positive values are sometimes followed by "E" for East. Negative values are sometimes written without the minus sign and are following by "W" for West.

We can perform conversions between latitude/longitude angles and distances by assuming that the Earth is a perfect sphere. The conversions are approximate because the Earth bulges at the equator and so is not a perfect sphere.

The average radius of the Earth is 6,371 kilometers or 6,371,000 meters. The circumference of the Earth at the equator is approximately 40,075.017 kilometers. The circumference of the Earth through the poles is approximately 40,007.863 kilometers.

The distance spanned by a latitude angle of one degree is 1,852 meters regardless of the longitude.

The distance spanned by a longitude angle varies based on the latitude. One degree of longitude spans a distance of approximately 111.319 kilometers at the equator but spans 0 kilometers at the poles.

The formula to compute the distance of one degree of longitude at a given latitude is the following where d is the distance, r is the sphere radius, and l is the latitude in degrees:

d = cos(lπ / 180) * r / 360

The values for d and r will have the same unit. For example, if r is given in meters then d will be in meters.

Map Points

MapKit provides the MKMapPoint struct which represents an Earth coordinate that has been projected onto a two-dimensional map.

To create an MKMapPoint for a given CLLocationCoordinate2D object which holds latitude and longitude values:

let mapPoint = MKMapPoint(coordinate)

MKMapPoint objects have the following properties:

To calculate the distance between two MKMapPoint objects:

let distance = mapPoint1.distance(to: mapPoint2)

To calculate the distance between to CLLocationCoordinate2D objects:

let distance = MKMapPoint(coordinate1).distance(to: MKMapPoint(coordinate2))

Annotations

Annotations are markers that are rendered on a map. The easiest way to add annotations is to use the provided MKMarkerAnnotationView which displays a pin in a bubble.

Custom annotations can be created using MKAnnotationView. See the Swiftful Thinking YouTube video Custom Map Annotation Pins for SwiftUI MapKit Map.

Overlays

Overlays draw on top of a map. A common example is drawing route lines that indicate how to travel from one location to another.

The provided subclasses of MKOverlayRenderer include:

Directions

Driving and walking directions are available in most cities. But as of 2022, transit directions are only available in around 80 cities. For a list, see iOS and iPadOS 16 Feature Availability. Click the "Transit" link in the "Maps" section. Transit directions are not currently available in London or Paris. Actually I've never been able to get transit directions from the MKDirections calculate method in any city!

The list also includes many cities outside the U.S. such as Berlin, Germany, London, United Kingdom, and Venice, Italy.

The MKLocalSearch class can be used to search for places that match given text and markers for each match can be added to the map.

Look Around

"Look Around" capabilities, introduced in iOS 16, can be added to display street level views. See https://developer.apple.com/videos/play/wwdc2022/10035/.

Countries and cities for which Look Around support has been added are listed at iOS and iPadOS 16 Feature Availability. Click the "Look Around" link in the "Maps" section.

The list includes the following U.S. cities:

When using the Apple Maps app, if Look Around is available for the current map location then a button containing a binocular icon will appear in the lower-left. Tap the button to open a Look Around view. This works in iOS Maps app, but doesn't not seem to work in macOS Maps app.

Map vs MKMapView

There are two options for displaying maps. UIKit provides MKMapView. In iOS 14 MapKit added the SwiftUI view Map. Map only supports a subset of the features available in MKMapView. For this reason in SwiftUI apps it is often desirable to define a struct that conforms to UIViewRepresentable and wraps access to a MKMapView.

MKMapView supports listening for tap gestures and getting the corresponding map coordinates. Map is not able to do this.

Both Map and MKMapView support including annotations which are single point markers. MKMapView also supports overlays which are graphical elements like lines, shapes, and images displayed on top of a map. These are often used to draw routes from one map location to another. Map does not support overlays.

MKMapView is able to load custom map tiles for a map background instead of relying on the default map tiles. Map is not able to do this.

Relationships

MKPlacemark objects provide a description of a map location. This class inherits from the CLPlacemark class.

CLPlacemark objects also provide a description of a map location. The location property is a CLLocation

CLLocation holds latitude, longitude, and course information. The coordinate property has the type CLLocationCoordinate2D.

CLLocationCoordinate2D holds latitude and longitude values.

MKPlacemark -> CLLocation -> CLLocationCoordinate2D

Showing Current Location

To show the current location of the user on the map, add the showUserLocation argument with a value of true to the Map initializer call.

Map(
    ...
     showsUserLocation: true,
     ...
)

Tracking User

To track the user location on a map, set the Info properties "Privacy - Location When In Use Usage Description" and "Privacy - Location Always and When in Use Usage Description" to strings that describe why permission to track location is being requested.

Create a Map instance with the following:

@State private var region = MKCoordinateRegion(
  center: CLLocationCoordinate2D(latitude: startLat, longitude: startLng),
  span: MKCoordinateSpan(latitudeDelta: 0.5, longitudeDelta: 0.5)
)

Map(
    coordinateRegion: $region,
    showsUserLocation: true,
    userTrackingMode: .constant(.follow)
)
.frame(width: someWidth, height: someHeight)

Simulator

To simulate a drag event, simply click and drag.

To zoom in, double-click. To zoom out, hold down the option key and click. Another option is to hold down the option key to display two circles that represent finger touch points. Drag the circles closer together to zoom out and farther apart to zoom in.

In the Simulator the location defaults to the location of Apple headquarters in Cupertino, California near San Jose. To change this, select Features ... Location ... Custom Location... and enter latitude and longitude values.

Deploying

The Info.plist file in one of my apps needed the following in order to deploy an archive without warnings:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>CFBundleDocumentTypes</key>
	<array>
		<dict>
			<key>CFBundleTypeName</key>
			<string>MKDirectionsRequest</string>
			<key>LSHandlerRank</key>
			<string>None</string>
			<key>LSItemContentTypes</key>
			<array>
				<string>com.apple.maps.directionsrequest</string>
			</array>
		</dict>
	</array>
	<key>ITSAppUsesNonExemptEncryption</key>
	<false/>
	<key>MKDirectionsApplicationSupportedModes</key>
	<array>
		<string>MKDirectionsModeBike</string>
		<string>MKDirectionsModeCar</string>
		<string>MKDirectionsModePedestrian</string>
	</array>
</dict>
</plist>

More

TODO: Add many more sections!
