Overview

iOS 16 added the Gauge view that graphically displays a value within a range.

Example App

See the example app GaugesDemo. It is based on the YouTube video Gauge View iOS 16 by Stewart Lynch.

Gauge

The Gauge view takes the following arguments:

• value: required Double or Int
• in: an optional Double or Int Range that defaults to 0...1
• label: required closure that returns a view to describe the gauge
• currentValueLabel: optional closure that returns a view to display the current value
• minimumValueLabel: optional closure that returns a view to display the minimum value
• maximumValueLabel: optional closure that returns a view to display the maximum value

The gaugeStyle view modifier specifies the kind of gauge to be displayed. Supported argument values include:

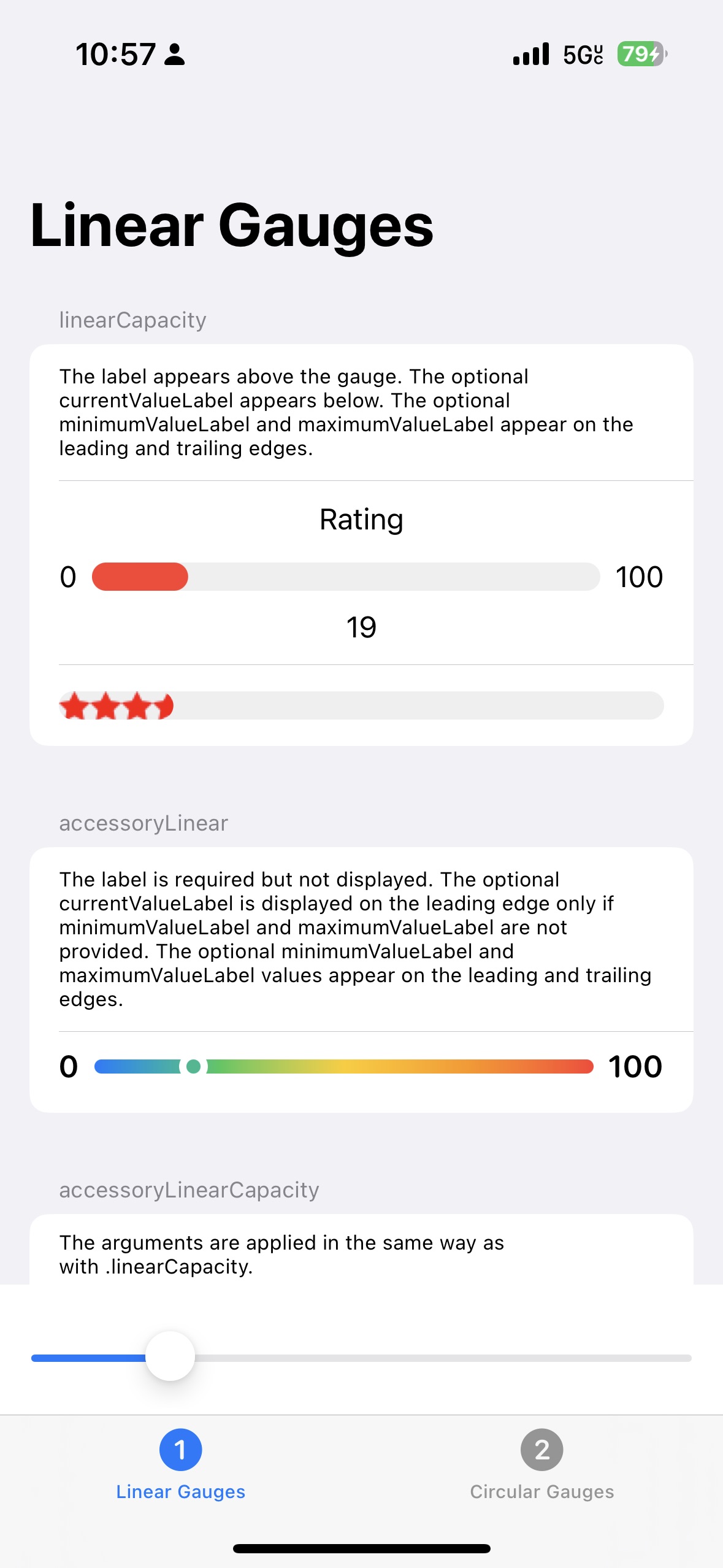

• .linearCapacity

  This displays a horizontal bar representing the entire range of values. This bar is gray by default and there does not seem to be a way to change it. The current value is indicated by drawing a bar in the specified tint color on top of the background bar starting from the left.

  A label, if provided, is displayed above the bar centered horizontally.

  The currentValueLabel, if provided, is displayed below the bar centered horizontally.

  The minimumValueLabel and maximumValueLabel, if provided, are displayed on the leading and trailing edge. If one is provided, the other must also be provided. They cannot be nil or an EmptyView, but they can be Text("").

• .accessoryLinear

  This displays a thinner bar than .linearCapacity.

  The current value is indicated by a circle drawn on the bar that has the specified tint color and includes a small amount of clear padding. If the tint is a gradient, the circle color takes on the appropriate color at its position within the gradient.

  A label is required but is not displayed.

  The currentValueLabel, if provided, is displayed on the leading edge only if the minimumValueLabel and maximumValueLabel are not provided. The minimumValueLabel and maximumValueLabel values, if provided, appear on the leading and trailing edges.

• .accessoryLinearCapacity

  This is similar to .linearCapacity, but draws a thinner bar.

  The label is displayed above the bar, but on the leading edge instead of being centered horizontally.

  The currentValueLabel is displayed below the bar, but on the leading edge instead of being centered horizontally.

  Gradient tints are not supported in this style.

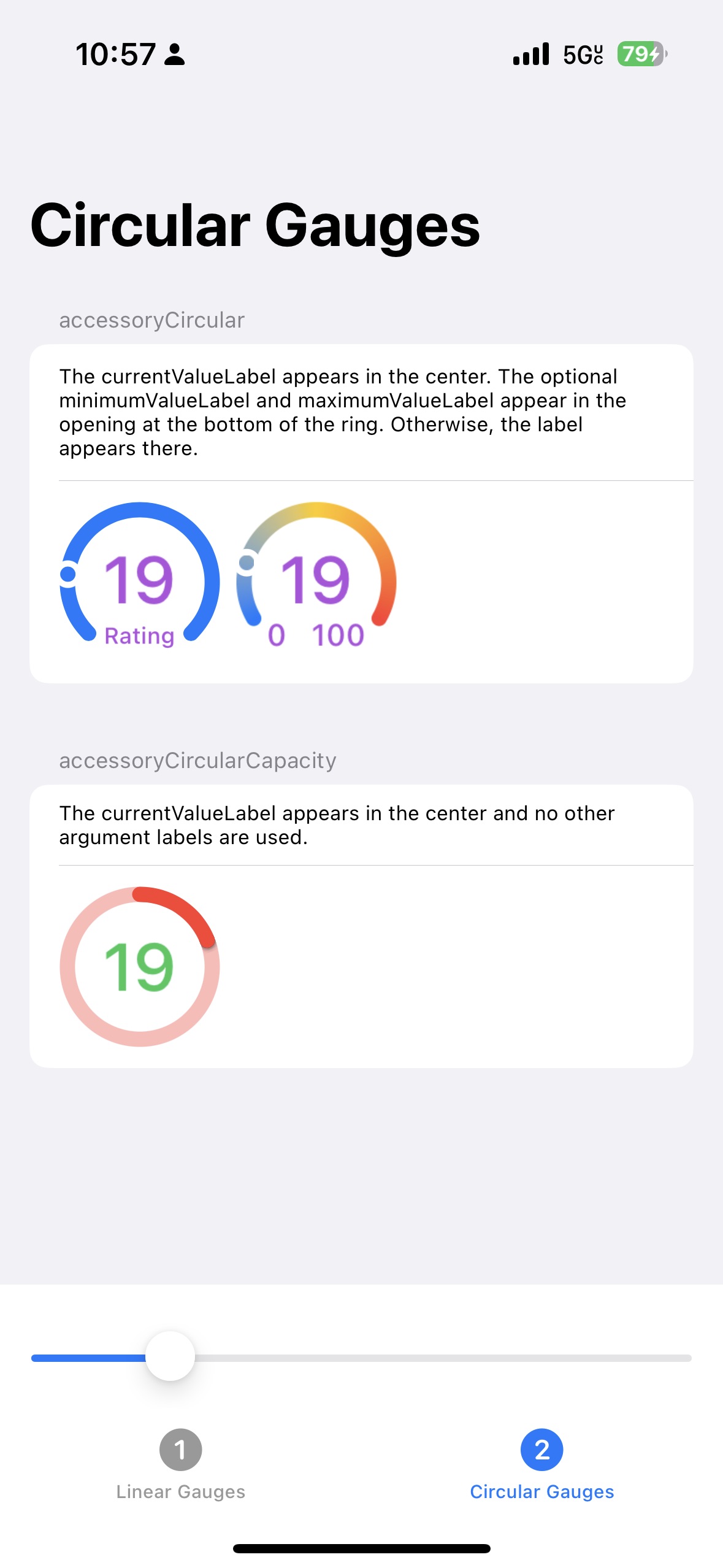

• .accessoryCircular

  This displays a circle that is open at the bottom where either a label or minimumValueLabel and maximumValueLabel can be displayed.

  The current value is indicated by a circle drawn on the bar that has the specified tint color and includes a small amount of clear padding. If the tint is a gradient, the circle color takes on the appropriate color at its position within the gradient.

  The currentValueLabel is displayed in the center.

  The opening at the bottom of the circle can contain either the currentValueLabel or the pair minimumValueLabel and maximumValueLabel.

• .accessoryCircularCapacity

  This displays a complete circle that can include currentValueLabel in the center.

  The label, minimumValueLabel, and maximumValueLabel are not used.

  The circle color uses a lower opacity version of the specified tint color. The current value is indicated by drawing an arc in the specified tint color starting at the top of the circle and going clockwise. There does not seem to be a way to specify separate colors for the background and foreground circles.
